When we were at the entry of the electonics world, we took one of the entrance-lessons:
Series connection adds up the system Voltage (V), stays the system Current (A).
Parallel connection adds up the system Current (A), stays the system Voltage (V).
Then we input the lessons to our products, see the Series connection and the Parallel connection of GEMBATTERY Lithium (LiFePO4) module system.

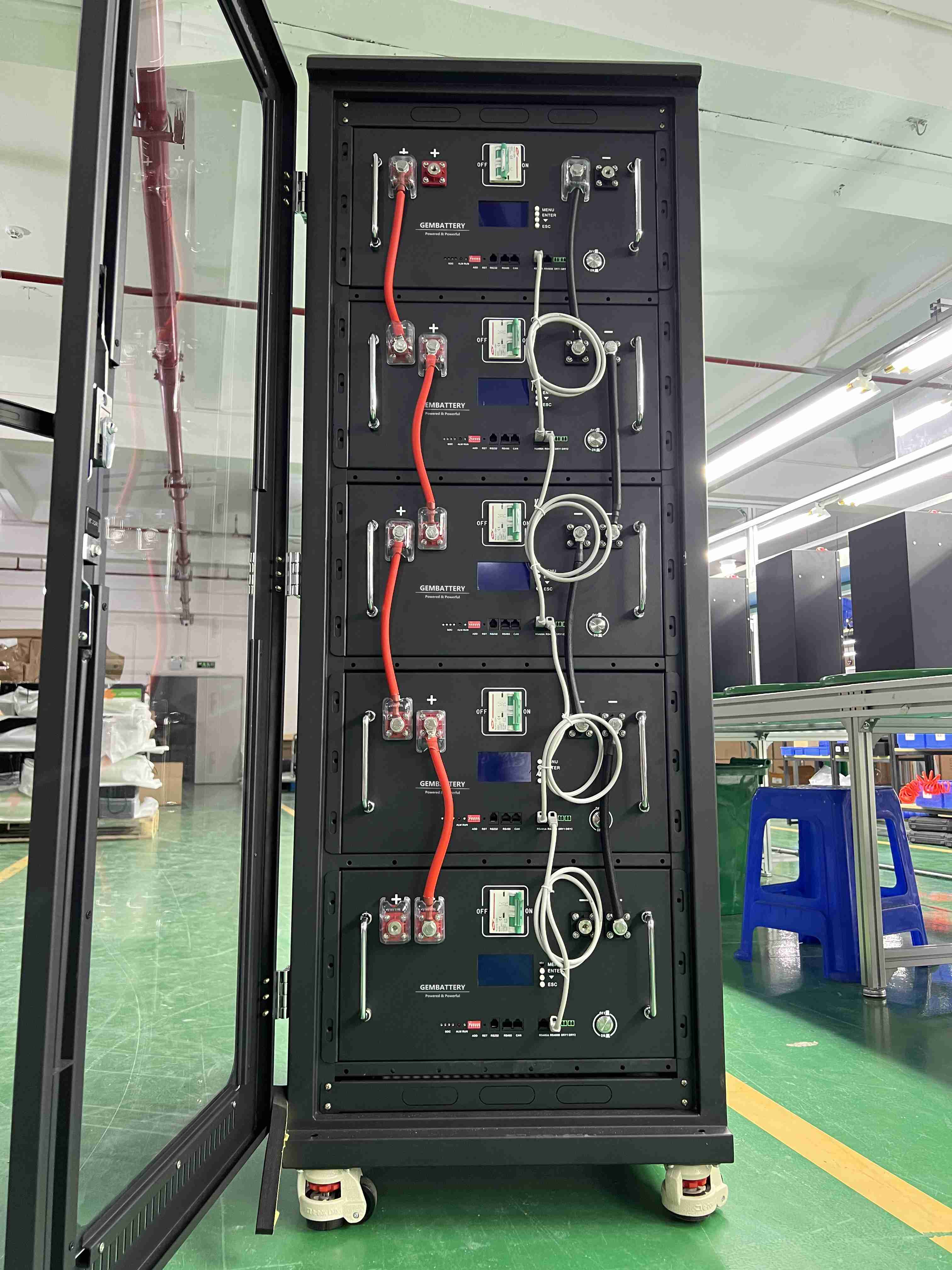

Series connection
Modules stacked with BCU (Battery Control Unit) are cabled between negative polarity and positive polarity for Series connection.
Module: GiB48-100(HV3U)
Module Energy: 5.12KWH (51.2V 100Ah)
Module dimension: 3U, fitting to standard 19 inch rack/cabinet.
Battery System Energy: 25.6KWH (256V 100Ah) by connecting 5 modules in Series.
Parallel connection
Modules stacked in battery cabinet are wired between negative polarity and next negative polarity for Parallel connection.
Module: GiB48-200
Module Energy: 10.24KWH (51.2V 200Ah)
Module dimension: Customized fitting the battery cabinet
Battery System Energy: 51.2KWH (51.2V 1000Ah) by connecting 5 modules in Parallel.
Customized battery-system connection modes are available with GEMBATTERY to fit your Voltage conversion cost analysis and Energy distribution, wisely.
Let's pass the lesson to anyone standing at the entry today. Get in, and discover more!
