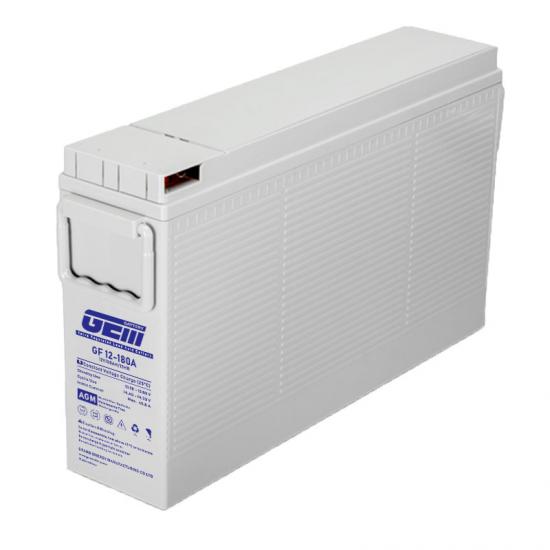

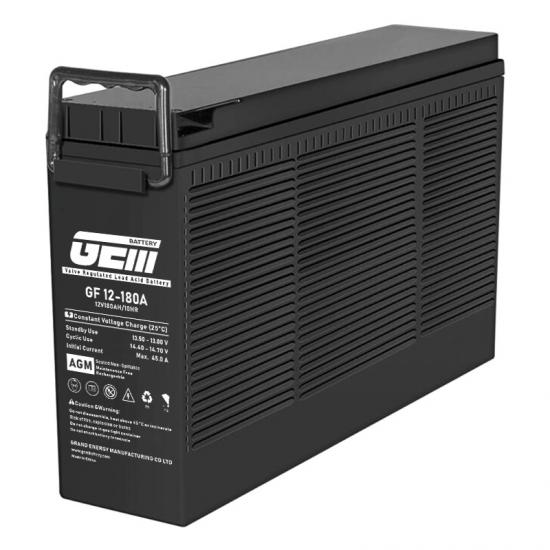

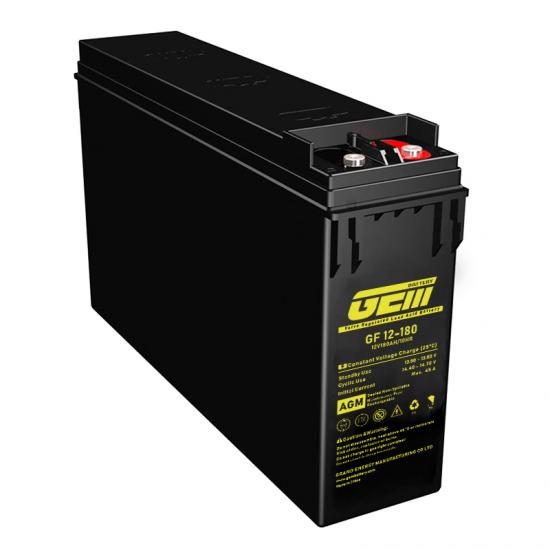

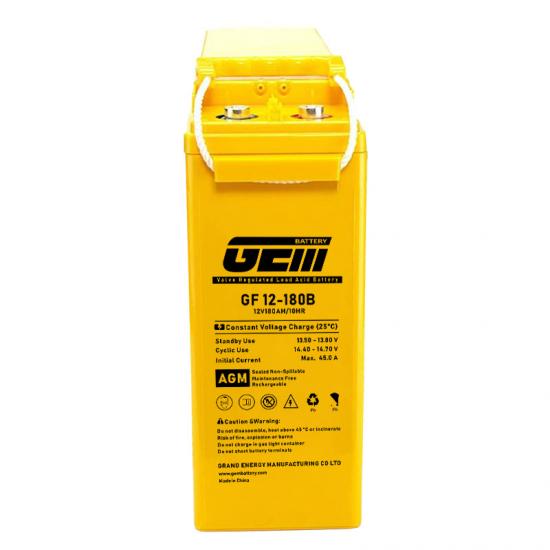

GF12-180 (12V180AH)

Brand:
GEM BATTERY
Item No.:
GF 12-180
Payment:
FOB & CIF
Product origin:
China
Color:
Customized color available, typically White.
Shipping port:
Xiamen
Lead Time:
25 days
Designed Life:
10-12 years

inquire now

Product Details

Item: GF 12-180 (12V180AH/10Hr)
Size: 546*125*316 mm (L*W*H)
Weight: 56.00 ( +5% kg/pc)
Terminal: M8*16

GEM I GF Series batteries are tailor-designed for telecom applications and the data centers. With the front terminal access layout, the batteries could be easily installed in modular cabinet & rack systems. The GEM I GF Series batteries adopt AGM technology, the new material AGM separator enables great efficiency of the internal gas re-combination and internal centralized venting operation, it makes the internal mechanism of the batteries running at low gas pressure so as to provide absolutely safe conditions and excellent reliability even if the compact width of the batteries. High quality Pb-Ca-Sn thicker plates are assembled to support long durability, the batteries would be offering 12 years float service time. Flame Retardant material for ABS cases is available.

GEM I GF Series	Voltage (V)	Capacity (AH/10HR)	Dimension (in)				Weight ±5% (lbs)	Dimension (mm)				Weight ±5% (kgs)	Terminal
			±0.04	±0.04	±0.08	±0.08		±1	±1	±2	±2
			L (in)	W (in)	H (in)	TH (in)		L (mm)	W (mm)	H (mm)	TH (mm)
GF 12-50	12	50	10.91	4.18	8.79	9.06	37.48	277	106	223	230	17.00	M8*16
GF 12-75	12	72	22.14	4.53	7.37	7.64	42.99	562	115	187	194	19.50	M8*16
GF 12-75A	12	80	22.14	4.53	7.37	7.64	57.32	562	115	187	194	26.00	M8*16
GF 12-100	12	100	15.52	4.33	11.27	11.27	66.14	394	110	286	286	30.00	M8*16
GF 12-100B	12	100	15.52	4.33	11.27	11.27	68.34	394	110	286	286	31.00	M8*16
GF 12-110	12	110	15.52	4.33	11.27	11.27	72.75	394	110	286	286	33.00	M8*16
GF 12-105	12	105	19.98	4.33	8.79	9.38	70.55	507	110	223	238	32.00	M8*16
GF 12-120	12	120	21.71	4.29	9.46	9.46	89.73	551	109	240	240	40.70	M8*16
GF 12-125	12	125	21.47	4.14	12.41	12.41	88.62	545	105	315	315	40.20	M8*16
GF 12-155	12	155	21.71	4.33	11.35	11.35	106.92	551	110	288	288	48.50	M8*16
GF 12-170	12	170	21.67	4.93	11.03	11.03	112.43	550	125	280	280	51.00	M8*16
GF 12-180	12	180	21.67	4.93	11.03	11.03	119.05	550	125	280	280	54.00	M8*16
GF 12-170A	12	170	21.51	4.93	12.45	12.73	119.05	546	125	316	323	54.00	M8*16
GF 12-180A	12	180	21.51	4.93	12.45	12.73	123.46	546	125	316	323	56.00	M8*16
GF 12-200A	12	200	21.51	4.93	12.45	12.73	127.87	546	125	316	323	58.00	M8*16
GF 12-170B	12	170	22.10	4.93	12.45	12.45	112.43	561	125	316	316	51.00	M8*16
GF 12-180B	12	180	22.10	4.93	12.45	12.45	118.61	561	125	316	316	53.80	M8*16
GF 12-200B	12	200	22.10	4.93	12.45	12.45	128.97	561	125	316	316	58.50	M8*16

To download the data sheet of specific model, please Contact us
