GS12-1.2 (12V1.2AH)


  • Brand:

    GEM BATTERY
  • Item No.:

    GS Series I AGM VRLA
  • Payment:

    FOB & CIF
  • Min order:

    one pallet load
  • Product origin:

    China
  • Color:

    Customized color available, typically Black.
  • Shipping port:

    Xiamen Port
  • Lead Time:

    25 days
  • Designed Life:

    5 years
  • Product Details

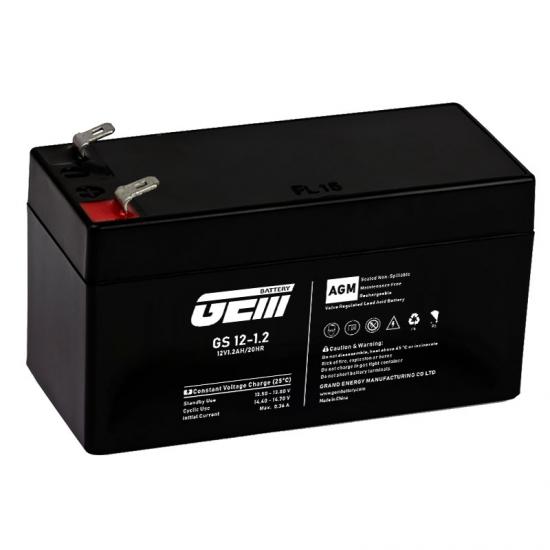

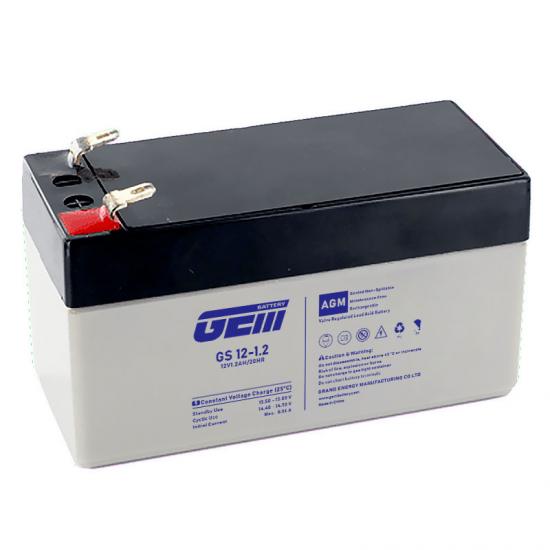

      Item: GS 12-1.2 (12V1.2AH/20Hr)
     Size: 97*41*52 mm (L*W*H)
     Weight: 0.55 ( +5% kgs)
     Terminal: F0


GEM I GS Series batteries have been developed from decades experience of manufacturing to meet various general-purpose and commercial applications. The batteries are AGM technology based products and complied with IEC61056-1/2 and IEC60896-21/22. GEM I GS Series batteries are in compact size with sealed maintenance-free design, quite flexible for multi-positioning installation and portable handling. The batteries could be applied for many civil applications, lamp and lantern, electric toys, power tools, civil or commercial UPS systems, emergency lights, security system, sound devices, etc... Compacted size and portable handling enable the batteries to be widely using in civil and mobile purpose. GEM I GS Series batteries are everywhere.



Feature assortment


lnnovated technology of battery plate formula designed for Deep Discharge.
Outstanding recharge acceptability after deep discharged.
Extreme low self-discharge, low internal resistance and low internal pressure.
Long Life Assembly using thicker plate with special chemical formation.



GEM I GS

Series

Voltage
(V)
Capacity
(AH/20HR)
Dimension (in)
Weight
±5%
(lbs)
Dimension (mm)
Weight

±5%

(kgs)

Terminal
±0.04 ±0.04 ±0.08 ±0.08 ±1 W ±2 ±2
L (in)
W (in)
H (in)
TH (in)
L (mm) W (mm) H(mm) TH (mm)
GS 12-0.8 12 0.8 3.78  0.99  2.44  2.44  0.66  96 25 62 62 0.30  Socket
GS 12-1.2 12 1.2 3.82  1.62  2.05  2.29  1.21  97 41 52 58 0.55  F0
GS 12-1.3 12 1.3 3.82  1.69  2.05  2.29  1.21  97 43 52 58 0.55  F0
GS 12-2.2 12 2.2 2.76  1.89  3.90  4.02  1.68  70 48 99 102 0.76  F0
GS 12-2.3 12 2.3 7.05  1.38  2.40  2.60  2.03  179 35 61 66 0.92  F0
GS 12-2.7 12 2.7 3.15  2.21  3.90  4.06  2.65  80 56 99 103 1.20  F1
GS 12-2.8 12 2.8 5.20  1.30  3.86  4.10  2.20  132 33 98 104 1.00  F1
GS 12-3.3 12 3.3 5.28  2.64  2.40  2.60  2.87  134 67 61 66 1.30  F1
GS 12-4L 12 4 7.68  1.85  2.76  2.99  3.42  195 47 70 76 1.55  F1/F2


To download the data sheet of specific model, please Contact us
