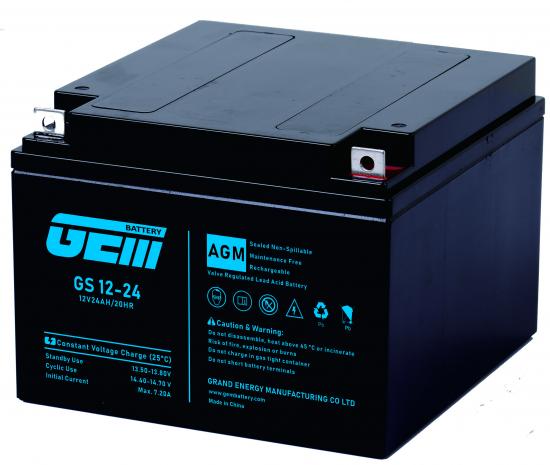

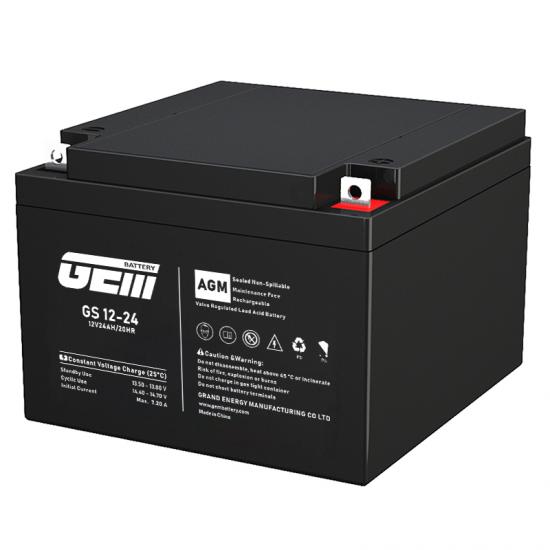

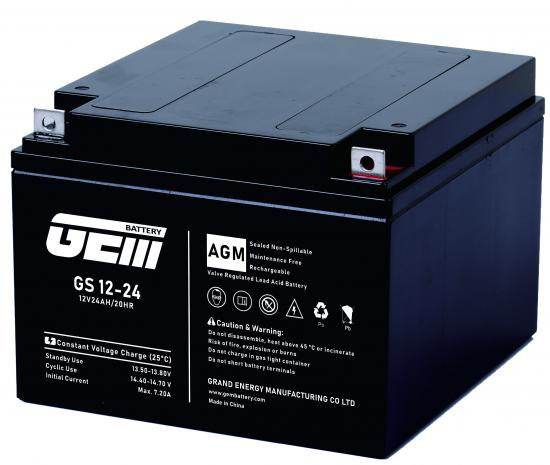

GS12-24 (12V24AH)


  • Brand:

    GEM BATTERY
  • Item No.:

    GS Series I AGM VRLA
  • Payment:

    FOB & CIF
  • Min order:

    one pallet load
  • Product origin:

    China
  • Color:

    Customized color available, typically Black.
  • Shipping port:

    Xiamen Port
  • Lead Time:

    25 days.
  • Designed Life:

    5 years
  • Product Details


      Item: GS 12-24 (12V24AH/20Hr)
     Size: 175*166*125 mm (L*W*H)
     Weight: 7.25 ( +5% kgs)
     Terminal: T3/M6*12



GEM I GS Series batteries have been developed from decades experience of manufacturing to meet various general-purpose and commercial applications. The batteries are AGM technology based products and complied with IEC61056-1/2 and IEC60896-21/22. GEM I GS Series batteries are in compact size with sealed maintenance-free design, quite flexible for multi-positioning installation and portable handling. The batteries could be applied for many civil applications, lamp and lantern, electric toys, power tools, civil or commercial UPS systems, emergency lights, security system, high-power mobile speaker and sound equipment, etc.... Moreover, the compact but high-energy-containing design could ideally support to commercial UPS systems, especially the 12V batteries with High-Rate (HR**) marked models are in great favor for industrial and critical UPS application. GEM I GS Series batteries are everywhere.



Feature assortment


lnnovated technology of battery plate formula designed for Deep Discharge.
Outstanding recharge acceptability after deep discharged.
Extreme low self-discharge, low internal resistance and low internal pressure.
Long Life Assembly using thicker plate with special chemical formation.




GEM I GS

Series

Voltage
(V)
Capacity
(AH/20HR)
Dimension (in)
Weight
±5%
(lbs)
Dimension (mm)
Weight
±5%
(kgs)
Terminal
±0.04 ±0.04 ±0.08 ±0.08 ±1 ±1 ±2 ±2
L (in)
W (in)
H (in)
TH (in)
L (mm)
W (mm)
H (mm)
TH (mm)
GS 12-4 12 4 3.55  2.76  3.98  4.14  3.15  90 70 101 105 1.43  F1/F2
GS 12-4.5 12 4.5 3.55  2.76  3.98  4.14  3.26  90 70 101 105 1.48  F1/F2
GS 12-5 12 5 3.55  2.76  3.98  4.14  3.53  90 70 101 105 1.60  F1/F2
GS 12-5 HR** 12 5 3.55  2.76  3.98  4.14  4.03  90 70 101 105 1.83  F2
GS 12-6S HR** 12 6 5.95  2.01  3.70  3.86  4.19  151 51 94 98 1.90  F2
GS 12-7 12 7 5.95  2.56  3.70  3.86  4.74  151 65 94 98 2.15  F1/F2
GS 12-7.2 12 7.2 5.95  2.56  3.70  3.86  4.85  151 65 94 98 2.20  F1/F2
GS 12-7.5 12 7.5 5.95  2.56  3.70  3.86  5.03  151 65 94 98 2.28  F1/F2
GS 12-8 12 8 5.95  2.56  3.70  3.86  5.25  151 65 94 98 2.38  F1/F2
GS 12-9 12 8.5 5.95  2.56  3.70  3.86  5.62  151 65 94 98 2.55  F1/F2
GS 12-9 HR** 12 8.6 5.95  2.56  3.70  3.86  5.91  151 65 94 98 2.68  F2
GS 12-10 12 10 5.95  2.56  4.33  4.53  6.83  151 65 110 115 3.10  F1/F2
GS 12-12 12 12 5.95  3.86  3.70  3.86  7.28  151 98 94 98 3.30  F1/F2
GS 12-12A 12 12 5.95  3.86  3.70  3.86  7.94  151 98 94 98 3.60  F1/F2
GS 12-17 12 17 7.13  3.03  6.58  6.58  10.80  181 77 167 167 4.90  T1/M5*10
GS 12-18 12 18 7.13  3.03  6.58  6.58  11.02  181 77 167 167 5.00  T1/M5*10
GS 12-18B 12 18 7.13  3.03  6.58  6.58  11.68  181 77 167 167 5.30  T1/M5*10
GS 12-18A 12 18 7.13  3.03  6.58  6.58  12.35  181 77 167 167 5.60  T1/M5*10
GS 12-18 APC 12 18 7.13  2.96  6.58  6.58  12.35  181 75 167 167 5.60  T1/M5*10
GS 12-20 HR** 12 20 7.13  3.03  6.58  6.58  12.57  181 77 167 167 5.70  T1/M5*10
GS 12-20A 12 20 7.13  3.03  6.58  6.58  13.45  181 77 167 167 6.10  T1/M5*10
GS 12-26L 12 26 6.50  4.93  6.86  6.86  17.64  165 125 174 174 8.00  T3/M6*12
GS 12-28L 12 28 6.50  4.93  6.86  6.86  18.30  165 125 174 174 8.30  T3/M6*12
GS 12-24 12 24 6.90  6.54  4.93  4.93  15.98  175 166 125 125 7.25  T3/M6*12
GS 12-26 12 26 6.90  6.54  4.93  4.93  16.53  175 166 125 125 7.50  T3/M6*12
GS 12-28 12 28 6.90  6.54  4.93  4.93  17.42  175 166 125 125 7.90  T3/M6*12
GS 12-30 12 30 6.90  6.54  4.93  4.93  18.08  175 166 125 125 8.20  T3/M6*12
GS 12-30 HR** 12 30 6.90  6.54  4.93  4.93  18.96  175 166 125 125 8.60  T3/M6*12


To download the data sheet of specific model, please Contact us
