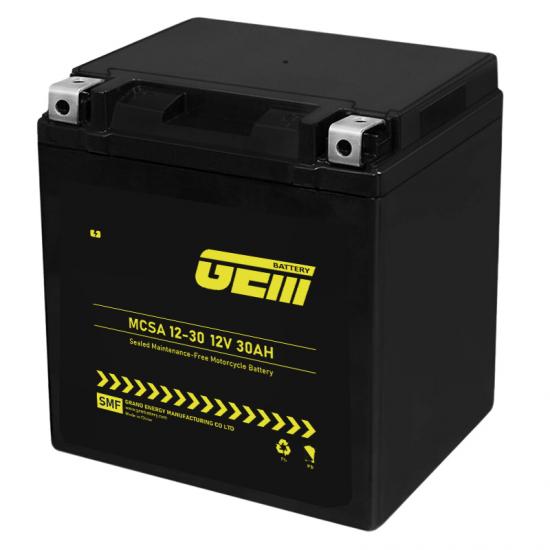

MCSA 12-30 (12V30AH)


  • Brand:

    GEM BATTERY
  • Item No.:

    Motorcycle battery
  • Payment:

    FOB & CIF
  • Product origin:

    China
  • Color:

    Customized color available, typically Black.
  • Shipping port:

    Xiamen
  • Lead Time:

    25 days
  • Product Details


Item: MCSA 12-30 (12V30AH/10Hr)

Size: 168*127*177 mm (L*W*H)

Weight: 9.35 ( +5% kgs)




GEM I GMC batteries are designed for engine starter of motorcycle, available with functional types of storage options and maintenance modes.


MCSA Series motorcycle batteries are Sealed Maintenance Free (SMF) and Activated in factory, they are all-the-time ready to be installed and provide instant power supplies to get the race started immediately. The fine quality porous AGM separator would greatly reduce internal electric resistance, thus to get a low self-discharge rate along with high energy reserved. Considering on regular self-discharge conditions, a topping charge to MCSA Series motorcycle batteries would be recommended when stock time over 6 months.


MCM Series batteries are Un-Sealed but with Maintenance Free featured, you will receive the batteries together with a high quality adhesive sticker which helps the users easily make DIY-sealing to the batteries. The MCM Series motorcycle batteries are favorable for business requires regular SKU planning with shelf storage up to 18 months. To read instruction before filling the electrolyte.


MCF Series motorcycle batteries would always take over heavy duties for hard loading and outdoor conditions. They are flooded and vented wet-battery, regular maintenance is required, as well as visible checking of electrolyte status. To read instruction before filling the electrolyte.


● GMC I MCSA Series Sealed Maintenance-Free Activated battery

GMC I MCSA Series
Voltage
(V)
Capacity
(AH)
Rating Dimension (in)
Weight
 (lbs)
±5%
Dimension (mm)
Weight
 (kg)
±5%
L W H TH L W H TH
±0.04 ±0.04 ±0.08 ±0.08 ±1 ±1 ±2 ±2
MCSA 6-4 6 4 10Hr 2.80  2.80  3.70  3.70  1.87  71 71 94 94 0.85
MCSA 6-4B 6 4 10Hr 3.11  1.85  3.90  3.90  1.74  79 47 99 99 0.79
MCSA 12-2.3B 12 2.3 10Hr 4.45  1.50  3.39  3.39  1.98  113 38 86 86 0.90
MCSA 12-2.3A 12 2.3 10Hr 4.49  1.93  3.35  3.35  2.18  114 49 85 85 0.99
MCSA 12-2.5 12 2.5 10Hr 3.15  3.03  4.10  4.10  2.47  80 77 104 104 1.12
MCSA 12-3 12 3 10Hr 3.86  2.21  4.29  4.29  2.91  98 56 109 109 1.32
MCSA 12-3S 12 3 10Hr 4.49  2.76  3.35  3.35  2.87  114 70 85 85 1.30
MCSA 12-4 12 4 10Hr 4.49  2.76  3.35  3.35  3.09  114 70 85 85 1.40
MCSA 12-4B 12 4 10Hr 4.73  2.80  3.59  3.59  3.64  120 71 91 91 1.65
MCSA 12-5 12 5 10Hr 4.49  2.76  4.18  4.18  3.88  114 70 106 106 1.76
MCSA 12-5B 12 5 10Hr 4.73  2.40  5.12  5.12  4.41  120 61 130 130 2.00
MCSA 12-6 12 6 10Hr 5.32  2.36  5.12  5.12  5.07  135 60 130 130 2.30
MCSA 12-6.5 12 6.5 10Hr 5.44  2.60  3.98  3.98  4.41  138 66 101 101 2.00
MCSA 12-7 12 7 10Hr 4.49  2.72  5.20  5.20  5.11  114 69 132 132 2.32
MCSA 12-7NB 12 7 10Hr 5.83  2.25  5.08  5.08  5.14  148 57 129 129 2.33
MCSA 12-7B 12 7 10Hr 5.91  2.36  5.12  5.12  5.51  150 60 130 130 2.50
MCSA 12-7A 12 7 10Hr 5.91  3.39  3.70  3.70  5.51  150 86 94 94 2.50
MCSA 12-7N 12 7 10Hr 5.36  2.99  4.93  4.93  5.51  136 76 125 125 2.50
MCSA 12-8
12 8
10Hr
5.91
3.39
4.18
4.18
5.95
150
86
106
106
2.70
MCSA 12-9B 12 9 10Hr 5.36  3.03  5.36  5.36  6.39  136 77 136 136 2.90
MCSA 12-9A 12 9 10Hr 5.95  2.56  4.14  4.14  5.29  151 65 105 105 2.40
MCSA 12-12 12 12 10Hr 5.91  3.39  5.16  5.16  9.10  150 86 131 131 4.13
MCSA 12-14 12 14 10Hr 5.91  3.39  5.75  5.75  9.52  150 86 146 146 4.32
MSCA 12-17 12 17 10Hr 7.09  2.76  6.54  6.54  5.29  180 70 166 166 2.40
MCSA 12-18 12 18 10Hr 5.95  3.43  6.34  6.34  12.35  151 87 161 161 5.60
MCSA 12-18H 12 18 10Hr 6.97  3.43  6.03  6.03  12.35  177 87 153 153 5.60
MCSA 12-20 12 20 10Hr 6.97  3.43  6.03  6.03  13.93  177 87 153 153 6.32
MCSA 12-24 12 24 10Hr 6.97  4.85  6.54  6.54  16.75  177 123 166 166 7.60
MCSA 12-28 12 28 10Hr 6.97  4.85  6.54  6.54  18.63  177 123 166 166 8.45
MCSA 12-30 12 30 10Hr 6.62  5.00  6.97  6.97  20.61  168 127 177 177 9.35



● GMC I MCM Series Dry Charged Maintenance-Free battery

GMC I MCM Series
Voltage
(V)
Capacity
(AH)
Rating Dimension (in) Weight
 (lbs)
±5%
Dimension (mm) Weight
 (kg)
±5%
L W H TH L W H TH
±0.04 ±0.04 ±0.08 ±0.08 ±1 ±1 ±2 ±2
MCM 12-4 12 4 10Hr 4.45  2.76  3.43  3.43  2.36  113 70 87 87 1.07
MCM 12-5 12 5 10Hr 4.45  2.76  4.14  4.14  2.98  113 70 105 105 1.35
MCM 12-5H 12 5 10Hr 4.73  2.36  5.12  5.12  2.98  120 60 130 130 1.35
MCM 12-6.5 12 6.5 10Hr 5.40  2.60  3.98  3.98  3.31  137 66 101 101 1.50
MCM 12-7B 12 7 10Hr 5.91  2.36  5.12  5.12  3.75  150 60 130 130 1.70
MCM 12-7AL 12 7 10Hr 5.32  3.03  5.32  5.32  3.86  135 77 135 135 1.75
MCM 12-7 12 7 10Hr 5.32  3.03  5.32  5.32  3.86  135 77 135 135 1.75
MCM 12-7L 12 7 10Hr 4.45  2.76  5.12  5.12  3.75  113 70 130 130 1.70
MCM 12-7A 12 9 10Hr 5.91  3.35  3.74  3.74  3.86  150 85 95 95 1.75
MCM 12-9 12 9 10Hr 5.32  2.96  5.40  5.40  3.97  135 75 137 137 1.80
MCM 12-9A 12 9 10Hr 5.91  3.35  4.14  4.14  4.41  150 85 105 105 2.00



● GMC I MCF Series Flooded vented wet-battery

GEM I MCF Series
Voltage
(V)
Capacity
(AH)
Rating Dimension (in) Weight
 (lbs)
±5%
Dimension (mm) Weight
 (kg)
±5%
L W H TH L W H TH
±0.04 ±0.04 ±0.08 ±0.08 ±1 ±1 ±2 ±2
MCF 12-2.5 12 2.5 10Hr 3.15  2.76  4.14  4.14  1.54  80 70 105 105 0.70
MCF 12-4 12 4 10Hr 4.45  2.76  3.43  3.43  2.40  113 70 87 87 1.09
MCF 12-5 12 5 10Hr 4.73  2.36  5.12  5.12  2.98  120 60 130 130 1.35
MCF 12-6.5 12 6.5 10Hr 5.44  2.68  3.98  3.98  3.31  138 68 101 101 1.50
MCF 12-7B-4B 12 7 10Hr 5.91  2.36  5.12  5.12  3.64  150 60 130 130 1.65
MCF 12-7-3B 12 7 10Hr 5.32  2.96  5.24  5.24  3.79  135 75 133 133 1.72
MCF 12-7L-4B 12 7 10Hr 5.91  3.35  3.74  3.74  3.86  150 85 95 95 1.75
MCF 12-9 12 9 10Hr 5.32  2.96  5.40  5.40  3.97  135 75 137 137 1.80
MCF 12-18 12 18 10Hr 7.33  4.93  6.74  6.74  8.27  186 125 171 171 3.75
MCF 12-28 12 28 10Hr 7.33  4.93  6.74  6.74  9.26  186 125 171 171 4.20



To download the data sheet of specific model, please Contact us
