Products

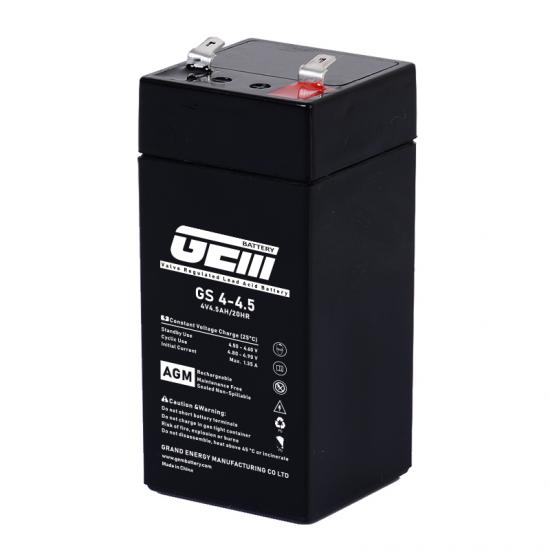

GS4-4.5 (4V4.5AH)


  • Brand:

    GEM BATTERY
  • Item No.:

    GS Series I AGM VRLA
  • Payment:

    TT, FOB & CIF
  • Min order:

    one pallet load
  • Product origin:

    China
  • Color:

    Customized color available, typically Black.
  • Shipping port:

    Xiamen Port
  • Lead Time:

    25 days.
  • Designed Life:

    5 years
  • Product Details

      Item: GS 4-4.5 (4V4.5AH/20Hr)
     Size: 48*48*102 mm (L*W*H)
     Weight: 0.50 ( +5% kgs)
     Terminal: F1



GEM I GS Series batteries have been developed from decades experience of manufacturing to meet various general-purpose and commercial applications. The batteries are AGM technology based products and complied with IEC61056-1/2 and IEC60896-21/22. GEM I GS Series batteries are in compact size with sealed maintenance-free design, quite flexible for multi-positioning installation and portable handling. The batteries could be applied for many civil applications, lamp and lantern, electric toys, power tools, civil or commercial UPS systems, emergency lights, security systems, sound devices, etc... Compacted size and portable handling enable the batteries to be widely used in civil and mobile purpose. GEM I GS Series batteries are everywhere.


GEM GS

Series

Voltage
(V)
Capacity
(AH/20HR)
Dimension (in)
Weight

±5%

(lbs)

Dimension (mm)
Weight

±5%

(kgs)

Terminal
±0.04 ±0.04 ±0.08 ±0.08 ±1 ±1 ±2 ±2
L (in)
W (in)
H (in)
TH (in)
L (mm)
W (mm)
H (mm)
TH (mm)
GS 4-4.5 4 4.5 1.89  1.89  4.02  4.26  1.10  48 48 102 108 0.50  F1
GS 8-3.2 8 3.2 5.28  1.42  2.48  2.72  1.76  134 36 63 69 0.80  F1

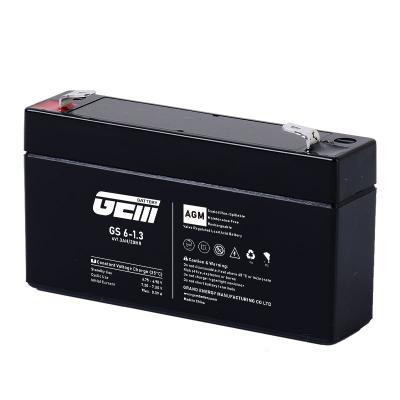

GS 6-1.3 6 1.3 3.82  0.95  2.05  2.29  0.60  97 24 52 58 0.27  F0

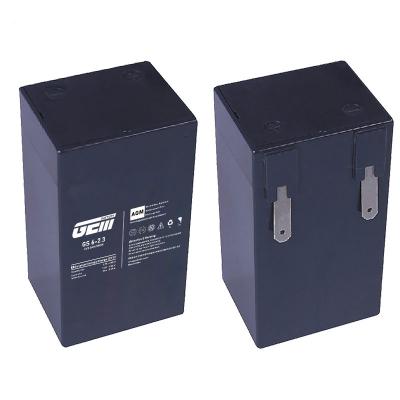

GS 6-2.3 6 2.3 1.69  1.46  2.99  2.99  0.66  43 37 76 76 0.30  F0

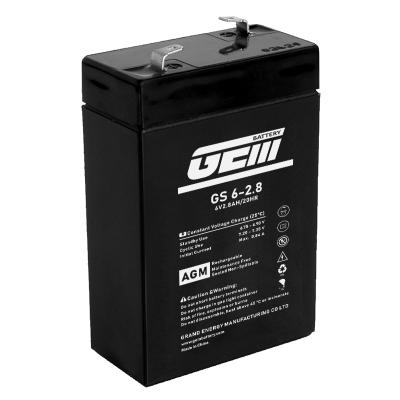

GS 6-2.8 6 2.8 2.60  1.30  3.82  4.10  1.10  66 33 97 104 0.50  F0
GS 6-3.2 6 3.2 4.93  1.30  2.40  2.64  1.37  125 33 61 67 0.62  F0

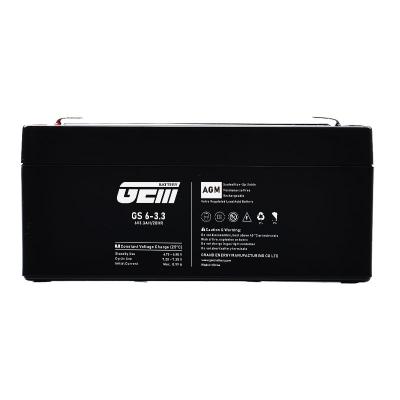

GS 6-3.3 6 3.3 5.28  1.38  2.40  2.64  1.39  134 35 61 67 0.63  F0
GS 6-4L 6 4 7.64  0.99  2.44  2.44  1.48  194 25 62 62 0.67  Plug
GS 6-4 6 4 2.76  1.85  3.98  4.22  1.65  70 47 101 107 0.75  F1/F2

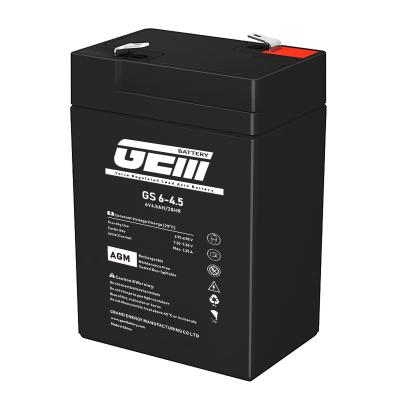

GS 6-4.5 6 4.5 2.76  1.85  3.98  4.22  1.76  70 47 101 107 0.80  F1/F2
GS 6-5 6 5 2.76  1.85  3.98  4.22  1.87  70 47 101 107 0.85  F1/F2
GS 6-6 6 6 3.35  1.85  3.94  4.18  2.25  85 47 100 106 1.02  F1/F2
GS 6-6H 6 6 3.35  1.93  4.41  4.65  2.34  85 49 112 118 1.06  F1/F2
GS 6-7 6 7 5.95  1.34  3.70  3.94  2.54  151 34 94 100 1.15  F1/F2
GS 6-9 6 8.6 5.95  1.34  3.70  3.94  2.87  151 34 94 100 1.30  F1/F2
GS 6-12 6 12 5.95  1.97  3.70  3.94  3.86  151 50 94 100 1.75  F1/F2
GS 6-14 6 14 4.26  2.80  5.52  5.52  4.63  108 71 140 140 2.10  F1/F2



To download the data sheet of specific model, please Contact us
