GDC12-28（12V28AH）

Brand:
GEM BATTERY
Item No.:
GDC 12-28
Payment:
TT, FOB & CIF
Product origin:
China
Color:
Typical White, customized color available
Lead Time:
25 days
Designed Life:
10-15 years

inquire now

Product Details

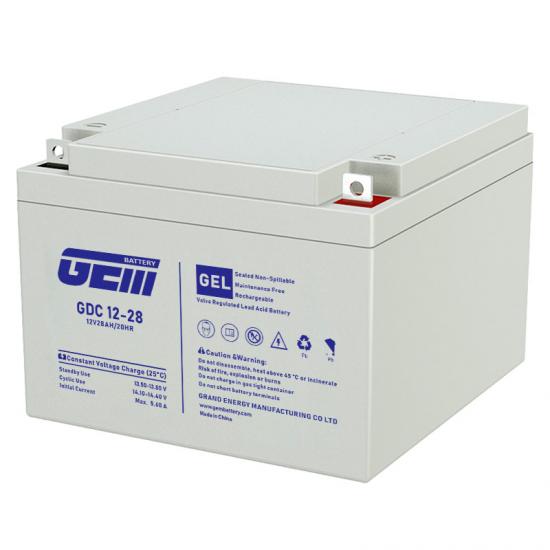

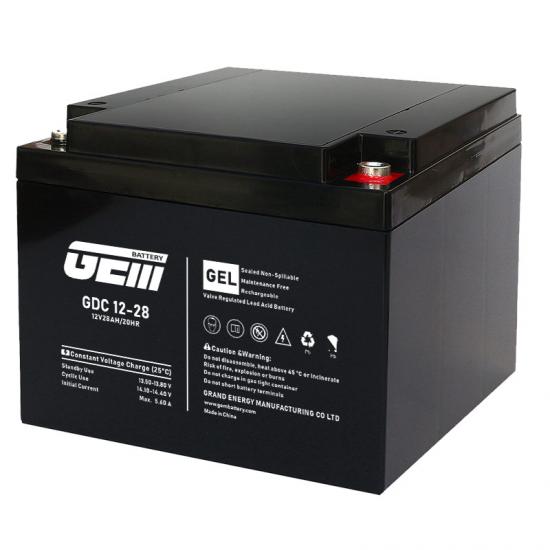

Item: GDC 12-28 (12V28AH/20Hr)
Size: 175*166*125 mm (L*W*H)
Weight: 8.00 ( +5% kg/pc)
Terminal: M6*12

GEM I GDC Series batteries are innovated and developed from ordinary AGM batteries with 15 years of float service life. The GDC Series batteries adopt AGM-GEL technology, complied with IEC60896-21/22 (for stationary installation) and IEC61427-1/2 (for Solar Power PV system) and designed for deep cycle discharge purpose. Selected high-quality AGM separator cooperates with formulated Gelled electrolyte and cyclic-featured thicker plates, GEM I GDC Series batteries are widely used for industrial power reserve and supply systems, such as Solar power and sizable EPS, as well as Deep Cycle applications.

▷ Main Features:

◆ Innovated technology of battery plate formula designed for Deep Discharge.

◆ Outstanding re-charge acceptability after deep discharged.

◆ Extreme low self-discharge, low internal resistance and low internal pressure.

◆ Long Life - Assembly using thicker plate with special chemical formation.

▷ Main Application:

● Telecom & Towers power assurance ● Data center ● Sizable UPS system ● High performance UPS system

● Medical power assurance ● Solar PV & Wind power ● Off-grid power system / Power plant

● Industrial battery & power reserve ● All general purpose

GEM I GDC Series	Voltage (V)	Capacity (AH/20HR)	Dimension (in)				Weight ±5% (lbs)	Dimension (mm)				Weight ±5% (kgs)	Terminal
			±0.04	±0.04	±0.08	±0.08		±1	±1	±2	±2
			L (in)	W (in)	H (in)	TH (in)		L (mm)	W (mm)	H (mm)	TH (mm)
GDC 12-28	12	28	6.90	6.54	4.93	4.93	17.64	175	166	125	125	8.00	M6*12
GDC 12-30	12	30	6.90	6.54	4.93	4.93	18.34	175	166	125	125	8.32	M6*12
GDC 12-33	12	33	7.72	5.24	6.34	6.70	24.25	196	133	161	170	11.00	M6*12
GDC 12-42	12	42	7.72	6.50	6.62	6.62	30.86	196	165	168	168	14.00	M6*16
GDC 12-45	12	45	7.72	6.50	6.70	6.70	31.97	196	165	170	170	14.50	M6*16
GDC 12-55	12	55	9.06	5.40	8.27	8.47	39.68	230	137	210	215	18.00	M6*16
GDC 12-65	12	65	13.79	6.62	7.05	7.05	52.91	350	168	179	179	24.00	M6*16
GDC 12-80	12	80	10.24	6.62	8.23	8.94	52.91	260	168	209	227	24.00	M6*16
GDC 12-100	12	100	13.00	6.82	8.55	8.67	69.44	330	173	217	220	31.50	M8*16
GDC 12-105	12	105	13.00	6.82	8.55	8.67	72.75	330	173	217	220	33.00	M8*16
GDC 12-120	12	120	16.00	6.82	9.30	9.30	80.69	406	173	236	236	36.60	M8*16
GDC 12-150	12	145	19.15	6.74	9.57	9.57	102.07	486	171	243	243	46.30	M8*16
GDC 12-150H	12	150	13.44	6.78	11.15	11.27	99.87	341	172	283	286	45.30	M8*16
GDC 12-200	12	200	20.61	9.46	8.63	8.79	138.89	523	240	219	223	63.00	M8*16
GDC 12-250	12	250	20.49	10.60	8.67	8.83	163.14	520	269	220	224	74.00	M8*16
GDC 12-110FT	12	110	15.52	4.33	11.27	11.27	74.52	394	110	286	286	33.80	M8*16
GDC 12-155FT	12	155	21.71	4.33	11.35	11.35	109.13	551	110	288	288	49.50	M8*16
GDC 12-170FT	12	170	22.10	4.93	12.45	12.45	120.81	561	125	316	316	54.80	M8*16
GDC 12-180FT	12	180	21.51	4.93	12.45	12.73	125.66	546	125	316	323	57.00	M8*16
GDC 12-200FT	12	200	21.51	4.93	12.45	12.73	130.07	546	125	316	323	59.00	M8*16
GDC 2-200	2	200	6.70	4.33	13.16	14.38	30.42	170	110	334	365	13.80	M8*16
GDC 2-300	2	300	6.74	5.95	13.40	14.38	44.09	171	151	340	365	20.00	M8*16
GDC 2-400	2	400	8.27	6.90	13.16	14.38	60.85	210	175	334	365	27.60	M8*16
GDC 2-500	2	500	9.46	6.82	13.32	14.38	77.60	240	173	338	365	35.20	M8*16
GDC 2-600	2	600	11.82	6.90	13.20	14.38	87.08	300	175	335	365	39.50	M8*16
GDC 2-800	2	800	16.15	6.90	13.04	14.38	120.15	410	175	331	365	54.50	M8*16
GDC 2-1000	2	1000	18.68	6.82	12.96	14.42	138.01	474	173	329	366	62.60	M8*16
GDC 2-1500	2	1500	15.68	13.79	13.44	15.09	217.81	398	350	341	383	98.80	M8*16
GDC 2-2000	2	2000	19.31	13.79	13.47	15.01	288.80	490	350	342	381	131.00	M8*16
GDC 2-3000	2	3000	28.05	13.91	13.44	15.05	421.08	712	353	341	382	191.00	M8*16
