Brand:
GEM BATTERYItem No.:
GDC 12-42Payment:
TT, FOB & CIFProduct origin:
ChinaColor:
Typical White, customized color availableLead Time:
25 daysDesigned Life:
10-15 years

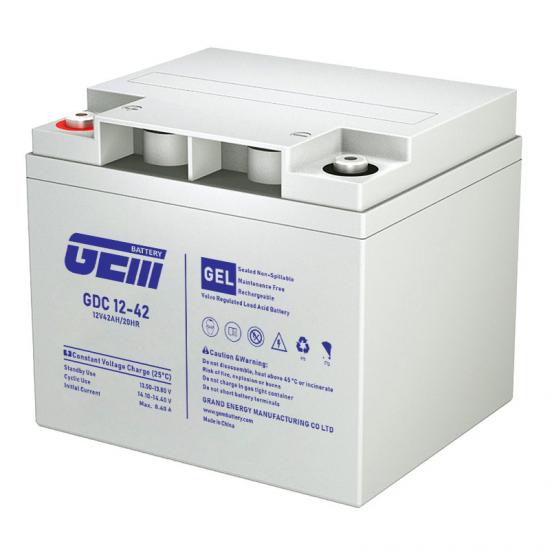

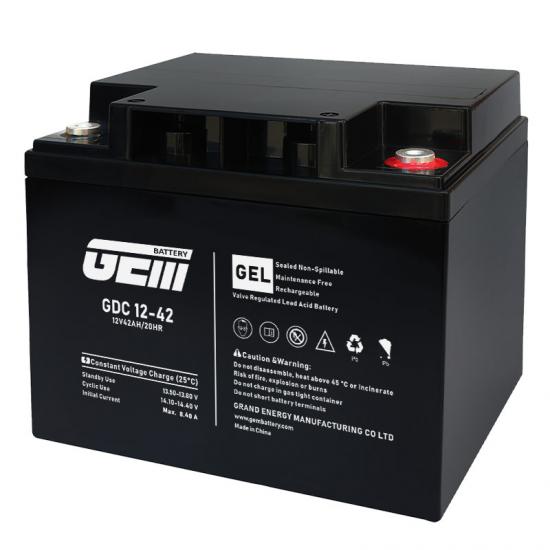

Item: GDC 12-42 (12V42AH/20Hr)
Size: 196*165*168 mm (L*W*H)
Weight: 14.00 ( +5% kg/pc)
Terminal: M6*16
GEM I GDC Series batteries are innovated and developed from ordinary AGM batteries with 15 years of float service life. The GDC Series batteries adopt AGM-GEL technology, complied with IEC60896-21/22 (for stationary installation) and IEC61427-1/2 (for Solar Power PV system) and designed for deep cycle discharge purpose. Selected high-quality AGM separator cooperates with formulated Gelled electrolyte and cyclic-featured thicker plates, GEM I GDC Series batteries are widely used for industrial power reserve and supply systems, such as Solar power and sizable EPS, as well as Deep Cycle applications.
▷ Main Features:
◆ Innovated technology of battery plate formula designed for Deep Discharge.
◆ Outstanding re-charge acceptability after deep discharged.
◆ Extreme low self-discharge, low internal resistance and low internal pressure.
◆ Long Life - Assembly using thicker plate with special chemical formation.
▷ Main Application:
● Telecom & Towers power assurance ● Data center ● Sizable UPS system ● High performance UPS system
● Medical power assurance ● Solar PV & Wind power ● Off-grid power system / Power plant
● Industrial battery & power reserve ● All general purpose
GEM I GDC Series |
Voltage
(V)
|
Capacity
(AH/20HR)
|
Dimension (in) |
Weight
±5%
(lbs)
|
Dimension (mm) |
Weight
±5%
(kgs)
|
Terminal | ||||||
±0.04 | ±0.04 | ±0.08 | ±0.08 | ±1 | ±1 | ±2 | ±2 | ||||||
L (in) | W (in) | H (in) | TH (in) | L (mm) | W (mm) | H (mm) | TH (mm) | ||||||
GDC 12-28 | 12 | 28 | 6.90 | 6.54 | 4.93 | 4.93 | 17.64 | 175 | 166 | 125 | 125 | 8.00 | M6*12 |
GDC 12-30 | 12 | 30 | 6.90 | 6.54 | 4.93 | 4.93 | 18.34 | 175 | 166 | 125 | 125 | 8.32 | M6*12 |
GDC 12-33 | 12 | 33 | 7.72 | 5.24 | 6.34 | 6.70 | 24.25 | 196 | 133 | 161 | 170 | 11.00 | M6*12 |
GDC 12-42 | 12 | 42 | 7.72 | 6.50 | 6.62 | 6.62 | 30.86 | 196 | 165 | 168 | 168 | 14.00 | M6*16 |
GDC 12-45 | 12 | 45 | 7.72 | 6.50 | 6.70 | 6.70 | 31.97 | 196 | 165 | 170 | 170 | 14.50 | M6*16 |
GDC 12-55 | 12 | 55 | 9.06 | 5.40 | 8.27 | 8.47 | 39.68 | 230 | 137 | 210 | 215 | 18.00 | M6*16 |
GDC 12-65 | 12 | 65 | 13.79 | 6.62 | 7.05 | 7.05 | 52.91 | 350 | 168 | 179 | 179 | 24.00 | M6*16 |
GDC 12-80 | 12 | 80 | 10.24 | 6.62 | 8.23 | 8.94 | 52.91 | 260 | 168 | 209 | 227 | 24.00 | M6*16 |
GDC 12-100 | 12 | 100 | 13.00 | 6.82 | 8.55 | 8.67 | 69.44 | 330 | 173 | 217 | 220 | 31.50 | M8*16 |
GDC 12-105 | 12 | 105 | 13.00 | 6.82 | 8.55 | 8.67 | 72.75 | 330 | 173 | 217 | 220 | 33.00 | M8*16 |
GDC 12-120 | 12 | 120 | 16.00 | 6.82 | 9.30 | 9.30 | 80.69 | 406 | 173 | 236 | 236 | 36.60 | M8*16 |
GDC 12-150 | 12 | 145 | 19.15 | 6.74 | 9.57 | 9.57 | 102.07 | 486 | 171 | 243 | 243 | 46.30 | M8*16 |
GDC 12-150H | 12 | 150 | 13.44 | 6.78 | 11.15 | 11.27 | 99.87 | 341 | 172 | 283 | 286 | 45.30 | M8*16 |
GDC 12-200 | 12 | 200 | 20.61 | 9.46 | 8.63 | 8.79 | 138.89 | 523 | 240 | 219 | 223 | 63.00 | M8*16 |
GDC 12-250 | 12 | 250 | 20.49 | 10.60 | 8.67 | 8.83 | 163.14 | 520 | 269 | 220 | 224 | 74.00 | M8*16 |
GDC 12-110FT | 12 | 110 | 15.52 | 4.33 | 11.27 | 11.27 | 74.52 | 394 | 110 | 286 | 286 | 33.80 | M8*16 |
GDC 12-155FT | 12 | 155 | 21.71 | 4.33 | 11.35 | 11.35 | 109.13 | 551 | 110 | 288 | 288 | 49.50 | M8*16 |
GDC 12-170FT | 12 | 170 | 22.10 | 4.93 | 12.45 | 12.45 | 120.81 | 561 | 125 | 316 | 316 | 54.80 | M8*16 |
GDC 12-180FT | 12 | 180 | 21.51 | 4.93 | 12.45 | 12.73 | 125.66 | 546 | 125 | 316 | 323 | 57.00 | M8*16 |
GDC 12-200FT | 12 | 200 | 21.51 | 4.93 | 12.45 | 12.73 | 130.07 | 546 | 125 | 316 | 323 | 59.00 | M8*16 |
GDC 2-200 | 2 | 200 | 6.70 | 4.33 | 13.16 | 14.38 | 30.42 | 170 | 110 | 334 | 365 | 13.80 | M8*16 |
GDC 2-300 | 2 | 300 | 6.74 | 5.95 | 13.40 | 14.38 | 44.09 | 171 | 151 | 340 | 365 | 20.00 | M8*16 |
GDC 2-400 | 2 | 400 | 8.27 | 6.90 | 13.16 | 14.38 | 60.85 | 210 | 175 | 334 | 365 | 27.60 | M8*16 |
GDC 2-500 | 2 | 500 | 9.46 | 6.82 | 13.32 | 14.38 | 77.60 | 240 | 173 | 338 | 365 | 35.20 | M8*16 |
GDC 2-600 | 2 | 600 | 11.82 | 6.90 | 13.20 | 14.38 | 87.08 | 300 | 175 | 335 | 365 | 39.50 | M8*16 |
GDC 2-800 | 2 | 800 | 16.15 | 6.90 | 13.04 | 14.38 | 120.15 | 410 | 175 | 331 | 365 | 54.50 | M8*16 |
GDC 2-1000 | 2 | 1000 | 18.68 | 6.82 | 12.96 | 14.42 | 138.01 | 474 | 173 | 329 | 366 | 62.60 | M8*16 |
GDC 2-1500 | 2 | 1500 | 15.68 | 13.79 | 13.44 | 15.09 | 217.81 | 398 | 350 | 341 | 383 | 98.80 | M8*16 |
GDC 2-2000 | 2 | 2000 | 19.31 | 13.79 | 13.47 | 15.01 | 288.80 | 490 | 350 | 342 | 381 | 131.00 | M8*16 |
GDC 2-3000 | 2 | 3000 | 28.05 | 13.91 | 13.44 | 15.05 | 421.08 | 712 | 353 | 341 | 382 | 191.00 | M8*16 |
To download the data sheet of specific model, please Contact us
GEM Battery obtains strong R&D capability to design and develop customized/tailored battery models. If you cannot find a suitable model from our web, please contact us. We will arrange senior sales representatives to follow up your case.
