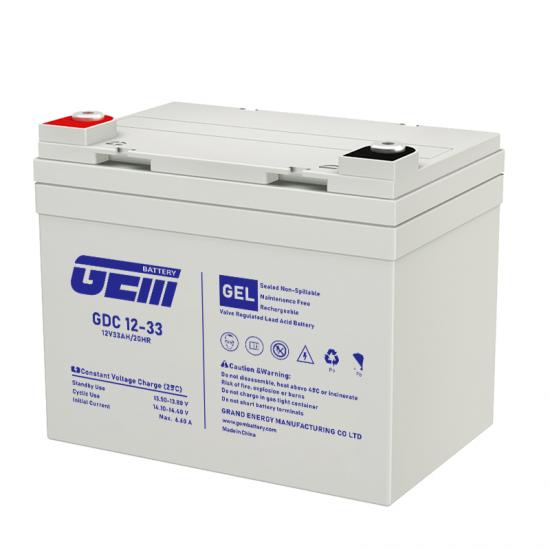

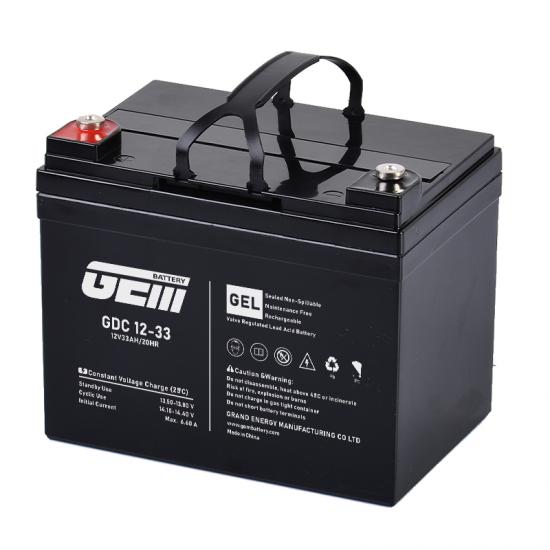

GDC12-33（12V33AH）

AGM-GEL VRLA batteries for Deep Cycle applications.

Premium quality PVC-GEL batteries

      Item: GM 12-50 (12V50AH/10Hr)      size：230*137*210 mm (L*W*H)      Weight(kg)：15.50 ( +5% kg/pc)      Terminal：M6*16 GEM I GM Series batteries are designed at a larger size and higher capacity than GS Series and carrying more energy power to support more-power-requiring applications. The batteries are using GEM selected models of Pb-Ca-Sn alloyed plates for assembly and adopt AGM technology, complied with IEC60896-21/22. GEM I GM Series batteries are perfect for commercial power reserve and storage systems. The high-energy-containing could greatly support to high-performance UPS systems, Data Center, Solar Power systems and Telecom Power applications, especially the 12V batteries with High-Rate (HR**) marked models are doing great for critical medical and UPS application, assuring electric power reserve and stable supply. Benefited from the completely sealing structure and high-efficiency of the internal gas recombination, the GEM I GM Series batteries are also doing good at Motive Power section, working as the main motive-power source to applications.  Application          ● UPS system      ● Telecom Power assurance      ● Solar energy      ● Power station & Power plant      ● Data-center, BTS & Towers      ● Computer network system  Technology       Adopted with latest and most advanced AGM technology for assembly. Thick and strengthened plates with anti-corruption designed for long life time. Using high purity metal lead/Pb during the production to assure low self-discharge and high power effiency.  Flame Retardant UL94 V-0 available on request.  Feature assortment General Purpose Standby Power (Float Service) Long Life (Standby) Long Life (Cyclic discharge) High-Rate discharge Deep Cycle (Deep and Cyclic discharge High-Low Temperature (-45ºC to 65ºC) GEM I GM Series Voltage (V) Capacity (AH/10HR)   Dimension (in) Weight ±5% (lbs) Dimension (mm) Weight ±5% (kgs) Terminal L (in) W (in) H (in) TH (in) L (mm) W (mm) H (mm) TH (mm) ±0.04 ±0.04 ±0.08 ±0.08 ±1 ±1 ±2 ±2 GM 12-30 12 31 7.64  5.24  6.66  6.70  22.05  194 133 169 170 10.00  M6*12 GM 12-36 HR** 12 36 7.64  5.24  6.66  6.70  25.35  194 133 169 170 11.50  M6*12 GM 12-33 12 33 7.72  5.24  6.34  6.70  23.81  196 133 161 170 10.80  M6*12 GM 12-38 12 38 7.72  6.50  6.62  6.62  28.22  196 165 168 168 12.80  M6*16 GM 12-40 12 40 7.72  6.50  6.62  6.62  29.10  196 165 168 168 13.20  M6*16 GM 12-42 12 42 7.72  6.50  6.62  6.62  30.42  196 165 168 168 13.80  M6*16 GM 12-45 12 45 7.72  6.50  6.62  6.62  31.08  196 165 168 168 14.10  M6*16 GM 12-48 HR** 12 48 7.72  6.50  6.62  6.62  32.19  196 165 168 168 14.60  M6*16 GM 12-50 12 50 9.06  5.40  8.27  8.47  34.17  230 137 210 215 15.50  M6*16 GM 12-55 12 55 9.06  5.40  8.27  8.47  36.38  230 137 210 215 16.50  M6*16 GM 12-55 HR** 12 55 9.06  5.40  8.27  8.47  38.58  230 137 210 215 17.50  M6*16 GM 12-60 12 60 13.79  6.62  7.05  7.05  41.89  350 168 179 179 19.00  M6*16 GM 12-65 12 65 13.79  6.62  7.05  7.05  46.30  350 168 179 179 21.00  M6*16 GM 12-65 HR** 12 65 13.79  6.62  7.05  7.05  51.81  350 168 179 179 23.50  M6*16 GM 12-65C 12 65 13.04  6.86  6.50  6.62  45.19  331 174 165 168 20.50  M6*16 GM 12-60B 12 60 10.24  6.62  8.39  8.51  40.79  260 168 213 216 18.50  M6*16 GM 12-65B 12 65 10.24  6.62  8.39  8.51  44.09  260 168 213 216 20.00  M6*16 GM 12-75 12 75 10.24  6.62  8.39  8.51  47.40  260 168 213 216 21.50  M6*16 GM 12-80 12 80 10.24  6.62  8.39  8.51  49.60  260 168 213 216 22.50  M6*16 GM 12-80 HR** 12 80 10.24  6.62  8.39  8.51  51.81  260 168 213 216 23.50  M6*16 GM 12-90 12 90 12.02  6.58  8.27  8.39  60.63  305 167 210 213 27.50  M6*16 GM 12-100 HR** 12 100 12.02  6.58  8.27  8.39  63.93  305 167 210 213 29.00  M6*16 GM 12-100B 12 100 13.00  6.82  8.55  8.67  63.93  330 173 217 220 29.00  M8*16 GM 12-100A 12 100 13.00  6.82  8.55  8.67  67.90 ...

      Item: GF 12-200 (12V200AH/10Hr)      Size: 546*125*316 mm (L*W*H)      Weight: 58.00 ( +5% kg/pc)      Terminal: M8*16 GEM I GF Series batteries are tailor-designed for telecom applications and the data centers. With the front terminal access layout, the batteries could be easily installed in modular cabinet & rack systems. The GEM I GF Series batteries adopt AGM technology, the new material AGM separator enables great efficiency of the internal gas re-combination and internal centralized venting operation, it makes the internal mechanism of the batteries running at low gas pressure so as to provide absolutely safe conditions and excellent reliability even if the compact width of the batteries. High quality Pb-Ca-Sn thicker plates are assembled to support long durability, the batteries would be offering 12 years float service time. Flame Retardant material for ABS cases is available. GEM I GF Series Voltage (V) Capacity (AH/10HR)   Dimension (in) Weight ±5% (lbs) Dimension (mm) Weight ±5% (kgs) Terminal ±0.04 ±0.04 ±0.08 ±0.08 ±1 ±1 ±2 ±2 L (in) W (in) H (in) TH (in) L (mm) W (mm) H (mm) TH (mm) GF 12-50 12 50 10.91  4.18  8.79  9.06  37.48  277 106 223 230 17.00  M8*16 GF 12-75 12 72 22.14  4.53  7.37  7.64  42.99  562 115 187 194 19.50  M8*16 GF 12-75A 12 80 22.14  4.53  7.37  7.64  57.32  562 115 187 194 26.00  M8*16 GF 12-100 12 100 15.52  4.33  11.27  11.27  66.14  394 110 286 286 30.00  M8*16 GF 12-100B 12 100 15.52 4.33 11.27 11.27 68.34 394 110 286 286 31.00 M8*16 GF 12-110 12 110 15.52  4.33  11.27  11.27  72.75  394 110 286 286 33.00  M8*16 GF 12-105 12 105 19.98  4.33  8.79  9.38  70.55  507 110 223 238 32.00  M8*16 GF 12-120 12 120 21.71  4.29  9.46  9.46  89.73  551 109 240 240 40.70  M8*16 GF 12-125 12 125 21.47  4.14  12.41  12.41  88.62  545 105 315 315 40.20  M8*16 GF 12-155 12 155 21.71  4.33  11.35  11.35  106.92  551 110 288 288 48.50  M8*16 GF 12-170 12 170 21.67  4.93  11.03  11.03  112.43  550 125 280 280 51.00  M8*16 GF 12-180 12 180 21.67  4.93  11.03  11.03  119.05  550 125 280 280 54.00  M8*16 GF 12-170A 12 170 21.51  4.93  12.45  12.73  119.05  546 125 316 323 54.00  M8*16 GF 12-180A 12 180 21.51  4.93  12.45  12.73  123.46  546 125 316 323 56.00  M8*16 GF 12-200A 12 200 21.51  4.93  12.45  12.73  127.87  546 125 316 323 58.00  M8*16 GF 12-170B 12 170 22.10  4.93  12.45  12.45  112.43  561 125 316 316 51.00  M8*16 GF 12-180B 12 180 22.10  4.93  12.45  12.45  118.61  561 125 316 316 53.80  M8*16 GF 12-200B 12 200 22.10  4.93  12.45  12.45  128.97  561 125 316 316 58.50  M8*16 To download the data sheet of specific model, please Contact us
